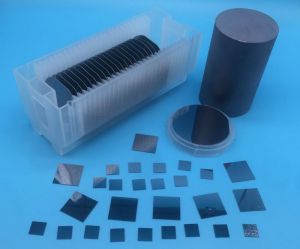

GaAs

Gallium arsenide (GaAs) is a compound synthesized by two elements of gallium and arsenic. It is an important group IIIA and group VA compound semiconductor material.

Gallium arsenide(GaAs) can be used to make microwave integrated circuits, infrared light-emitting diodes, semiconductor lasers and solar cells. GaAs is often used as the base material for the epitaxial growth of III-V semiconductors, including indium gallium arsenide, aluminum gallium arsenide, and so on.

The advantages include:

▪ Very high electron mobility.

▪ GaAs cells are relatively insensitive to heat compare to silicon cells. Hence it offers high thermal stability.

▪ Lower noise.

▪ Operates over wide temperature range.

▪ High efficiency and resistance to radiation.

Uses/Applications

Gallium arsenide(GaAs) can be used to make microwave integrated circuits, infrared light-emitting diodes, semiconductor lasers and solar cells. GaAs is often used as the base material for the epitaxial growth of III-V semiconductors, including indium gallium arsenide, aluminum gallium arsenide, and so on.

Features/Benefits

▪ Very high electron mobility.
▪ GaAs cells are relatively insensitive to heat compare to silicon cells. Hence it offers high thermal stability.
▪ Lower noise.
▪ Operates over wide temperature range.
▪ High efficiency and resistance to radiation.

  • Single Crystal

    Doping

    Conductivity Type

    Carrier Concentration (cm-3)

    Dislocation Density (cm-2)

    Growth Method

    Standard Substrate

    GaAs

    None

    Si

    /

    <5×105

    LEC

    HB

    Dia3″

    Dia3″×0.5

    Dia2″×0.5

    Si

    N

    >5×1017

    Cr

    Si

    /

    Fe

    N

    ~2×1018

    Zn

    P

    >5×1017

    Dimension

    25×25×0.5mm10×10×0.5mm10×5×0.5mm5×5×0.5mm

    According to customer needs, substrates with special orientation and size can be customized.

    Surface Roughness

    Surface roughness(Ra):<=5Å
    Atomic Particle Microscopy (AFM) test report can be provided.

    Polishing

    One side or two sides

    Package

    Class 100 clean bag, Class 1000 super clean room


  • 25×25×0.5mm10×10×0.5mm10×5×0.5mm5×5×0.5mm

    According to customer needs, substrates with special orientation and size can be customized.
