Magnesium oxide (MgO) single crystal substrates are widely used in many thin film technology fields. Such as the production of magnetic films, semiconductor films, optical films and high-temperature superconducting films. Because the dielectric constant and loss of MgO single crystal in the microwave band are very small, and large-area substrates (2 inches in diameter and larger) can be obtained, it is an important high-temperature superconducting thin-film single crystal substrate for the current industrialization. one. It can be used to make high-temperature superconducting microwave filters and other devices required by mobile communication equipment, and has a large realistic and potential application market.

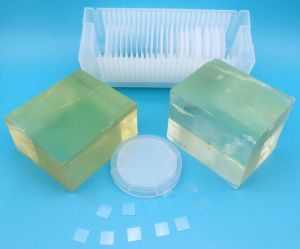

CasCrysTech (CCT) provides high quality magnesium oxide (MgO) crystal upon request of clients.
MgO are used in many thin film technology fields:
▪ Magnetic films
▪ Semiconductor films
▪ Optical films
▪ High-temperature superconducting films
The dielectric constant and loss of MgO single crystal in the microwave band are very small, and large-area substrates (2 inches in diameter and larger) can be obtained.
Special Arc Melting
36 W/mk @ 300°K
5x5mm，10x10mm，20x20mm，30x30mm ,Ø50.8 mm
One side or two sides
Crystal Plane Orientation Accuracy
Edge Orientation Accuracy
2°（Special requirements can reach within 1°）
Class 100 clean bag, Class 1000 super clean room
5x5mm，10x10mm，20x20mm，30x30mm , Ø50.8 mm
