NaCl

Crystals such as sodium chloride, potassium bromide and potassium chloride are uniform, bright and high transmittance within 0.250-20 μm when thickness less than 10mm, and no impurity absorption. These single crystals are idea materials for making optical elements for prisms, lenses, filters, and various pool and laser windows in infrared devices and optical instruments.

Uses/Applications

Idea materials for making optical elements for prisms, lenses, filters, and various pool and laser windows in infrared devices and optical instruments.

Features/Benefits

Uniform, bright and high transmittance within 0.250-20 μm when thickness less than 10mm, and no impurity absorption.

  • Crystal Structure

    Cubic

    Growth method

    Czochralski

    Melting point

    801 ℃

    Lattice constant

    a=5.642Å

    Density

    2.16g/cm3

    Transmission Band

    0.25-22.00 μm

    Refractivity

    1.54427

    Transmissivity

    90% @ 0.25-20 μm

    S/D

    80/50

    Roughness

    ≤ 30nm

    Hygroscopy

    water-soluble crystal, which is easily tidal, and cannot be chemically polished,

    Orientation

    <100>,<110>,<111>.

    Orientation tolerance

    ±0.5-2°

    Dimension

    10×10mm20*20mm.Dia50.8mm

    Can be processed according to the customer needs

    Thickness

    0.5-5 mm

    Can be processed according to the customer needs

    Polishing

    One side or two sides

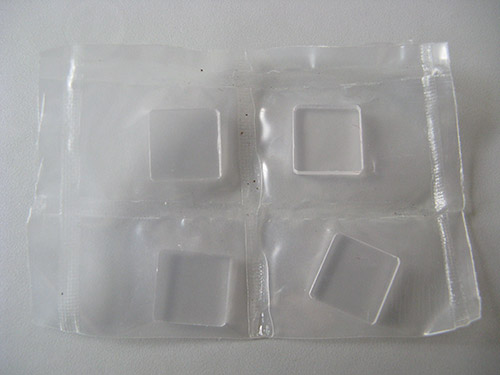

    Packing

    Class 100 clean bag, Class 1000 clean room


  • Dimension

    10×10mm、20*20mm.

    Φ50.8mm


    Thickness

    0.5-5 mm


    Customed upon request.
