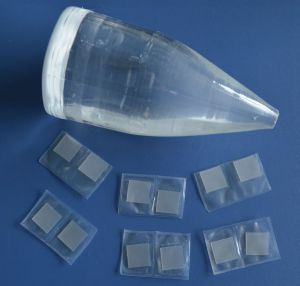

TeO2

TeO2 is an acousto-optical material with high-quality factors, such as good birefringence and optical performance, slow sound propagation in the [110] direction, and the optical devices can improve by orders of magnitude, fast response speed, low driving power, high diffraction efficiency, and stable and reliable performance.

It is the ideal single crystal material for making various acoustic and optical devices, such as acoustic and optical detect, modulators, resonators, and adjustable filters.

Uses/Applications

TeO2 is the ideal single crystal material for making various acoustic and optical devices, such as acoustic and optical detect, modulators, resonators, and adjustable filters.

Features/Benefits

TeO2 is an acousto-optical material with high-quality factors, such as good birefringence and optical performance, slow sound propagation in the [110] direction, and the optical devices can improve by orders of magnitude, fast response speed, low driving power, high diffraction efficiency, and stable and reliable performance.

  • Melting Point

    733℃

    Density

    6.0 (g/cm3

    Mohs Hardness

    4mohs

    Color

    Transparent / colorless

    Transmission Wavelength

    0.33-5.0μm

    Transmittance

    >70%@632.8nm

    Refractive Index

     ne =2.411   no= 2.258 @632.8nm

    Thermal Conductivity

    3 (W/mK

    Acoustic Velocitykm/sec

    0.617 for shear wave along<110>
    4.26  for longitudinal wave along<001>

     Sound and Light Quality Factors10-18 sec/g

    1200 for shear mode along<110>
    34.5 for longitudinal mode along<001>

    Dimension

    5x5mm10×10mm15×15mm20×20mm

    Thickness

    0.5mm1.0mm5mm

    Dimension Tolerance

    <±0.1mm

    Thickness Tolerance

    <±0.05mm

    Polishing

    One side or two sides

    Orientation

    <110>

    Orientation Tolerance

    ±0.5°

    Package

    Class 100 clean bag, Class 1000 super clean room


  • Dimension

    5x5mm、10×10mm、15×15mm、20×20mm

    Dimension Tolerance

    <±0.1mm


    Thickness

    0.5mm、1.0mm、5mm

    Thickness Tolerance

    <±0.05mm
