YAlO3
Yttrium aluminate (YAlO3, YAP) single crystal is an important crystal matrix material similar to YAG single crystal with excellent optical and physical and chemical properties. YAP crystals doped with rare earth and transition metal ions are widely used in lasers, scintillation, and holography. Recording and optical data storage, ionizing radiation dosimeters and high-temperature superconducting film substrates and other fields.

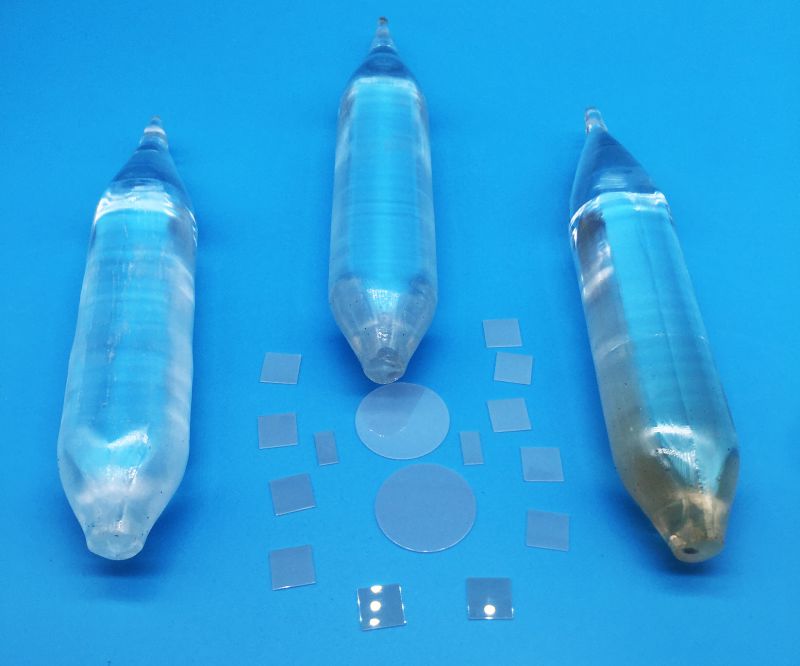

CasCrysTech (CCT) provides high quality Yttrium aluminate (YAlO3, YAP) crystal upon customer's requirements.
Uses/Applications
YAP crystals doped with rare earth and transition metal ions are widely used in lasers, scintillation, and holography. Recording and optical data storage, ionizing radiation dosimeters and high-temperature superconducting film substrates and other fields.
Features/Benefits
Yttrium aluminate (YAlO3, YAP) single crystal is an important crystal matrix material similar to YAG single crystal with excellent optical and physical and chemical properties.
-
Crystal Structure
Monoclinic
Lattice Constant
a=5.176 Å、b=5.307 Å、c=7.355 Å
Density
4.88 (g/cm3)
Melting Point
1870℃
Dielectric Constant
16-20
Thermal Expansion
2-10×10-6/K
Dimension
10x3mm, 10x5mm，10x10mm，15x15mm，20x15mm，20x20mm
Dia1”, Dia30mm
Thickness
0.5mm，1.0mm
Polishing
One side or two sides
Orientation
<100>,<001><010>,<110>
Crystal Plane Orientation Accuracy
±0.5°
Edge Orientation Accuracy
2°（Special requirements can reach within 1°）
Bevel Wafer
According to specific requirements, wafers with edge-oriented crystal planes inclined at a specific angle (inclination angle 1°-45°) can be processed.
Surface Roughness
Ra:≤5Å（5×5µm）
Package
Class 100 clean bag, Class 1000 super clean room
-
Dimension
10x3mm, 10x5mm，10x10mm，15x15mm，20x15mm，20x20mm
Ø1”, Ø30mm
Thickness0.5mm，1.0mm
