BaF2
Barium fluoride (BaF2) crystal belongs to cubic crystal system, good moisture resistance, melting point 1280 °C, high using temperature, the refractive index does not change much in a wide wavelength range and with a wide of light transmission range. The highest transmittance can reach >90% in the wavelength range of 0.2μm to 10μm. BaF2 crystal has good optical and mechanical properties. These make BaF2 crystal be widely used in infrared and ultraviolet windows and prism substrates.
In addition, BaF2 crystals also have excellent scintillation properties (due to their fast and slow 2 luminescence components, the crystal can simultaneously measure energy spectrum and time spectrum, Moreover, the energy resolution and time resolution are relatively high, so the BaF2 has broad application prospects in the fields of high energy physics, nuclear physics and nuclear medicine.

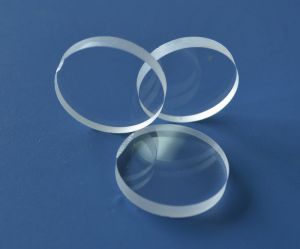

CasCrysTech(CCT) provides barium fluoride (BaF2) crystal.
Uses/Applications
BaF2 crystal is widely used in infrared and ultraviolet windows and prism substrates.
broad application prospects in the fields of high energy physics, nuclear physics and nuclear medicine.
Features/Benefits
BaF2 crystal has good optical and mechanical properties. The refractive index does not change much in a wide wavelength range and with a wide of light transmission range. The highest transmittance can reach >90% in the wavelength range of 0.2μm to 10μm.
BaF2 crystals also have excellent scintillation properties (due to their fast and slow 2 luminescence components, the crystal can simultaneously measure energy spectrum and time spectrum, moreover, the energy resolution and time resolution are relatively high.
-
Crystal Structure
Cubic
Lattice Constant
6.196Å
Density
4.88(g/cm3)
Melt Point
1354℃
Growth Method
Bridgeman
Mohs Hardness
3 (mohs)
Thermal Expansion
18.1×10-6/K //c
Refractive Index
1.47443
Transmission Wavelength
0.15-13.00 μm
Transmittance
>93%@5m>75%@0.2m
Color Deviation
0.00578Hf-Hc
Temperature Coefficient
15.2-6.2@0.8m
Cleavage Plane
<111>
Maximum Size
Dia2″×80mm
Surface Roughness
Ra<5Å(5×5μm)
Application
infrared and ultraviolet windows, prism substrates
Polishing
One side or two sides
Package
Class 100 clean bag, Class 1000 super clean room
-
According to customer requirements.
